Hammar  500

36 or 45 tonnes Safe Working Load, tare weight from 10,5 tonnes.

Hammar 500 Hotspot Main

Why the Hammar 500 Sideloader?

The Hammar 500 is the peak of Sideloader performance, offering unmatched versatility and capability. As the top-of-the-line model in the Hammar range, it is built for those who demand the highest capacity and the most advanced features available. With a lifting capacity of 36 or 45 tonnes (SWL) and a remarkable reach of 6 meters, the Hammar 500 stands out where other models fall short.
The model's support legs feature three different operational modes, each excelling at different tasks. It has the ability to handle more complex situations and is particularly useful in yard or terminal operations. It is the ideal choice for those who need a Sideloader model that can do it all. Whether it’s heavy lifting or more advanced container placements, the Hammar 500 delivers excellent performance across the board.

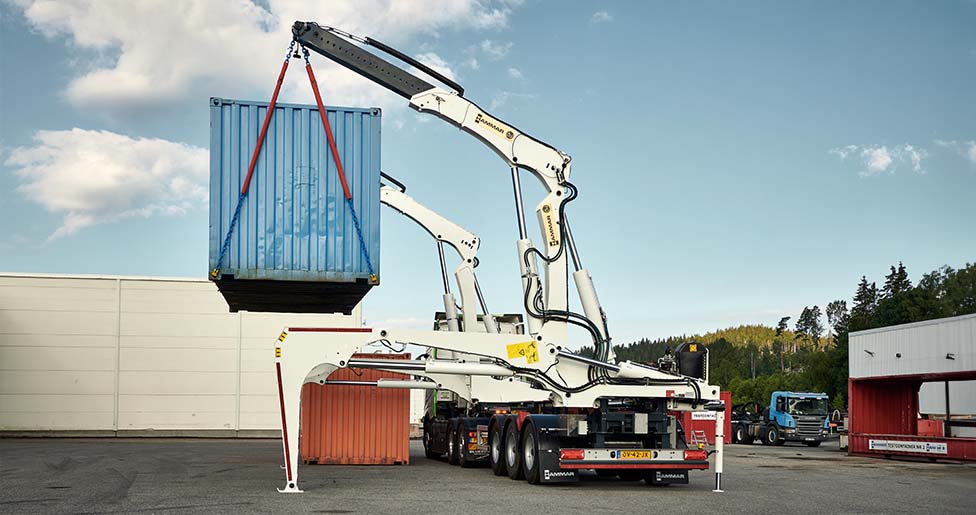

Hammar 500 Stepover Mode

StepOver Mode

The StepOver Mode is the main lifting mode of the Hammar 500. It has maximum stability, the highest Safe Working Load at range and is exceptional for transfer operations.

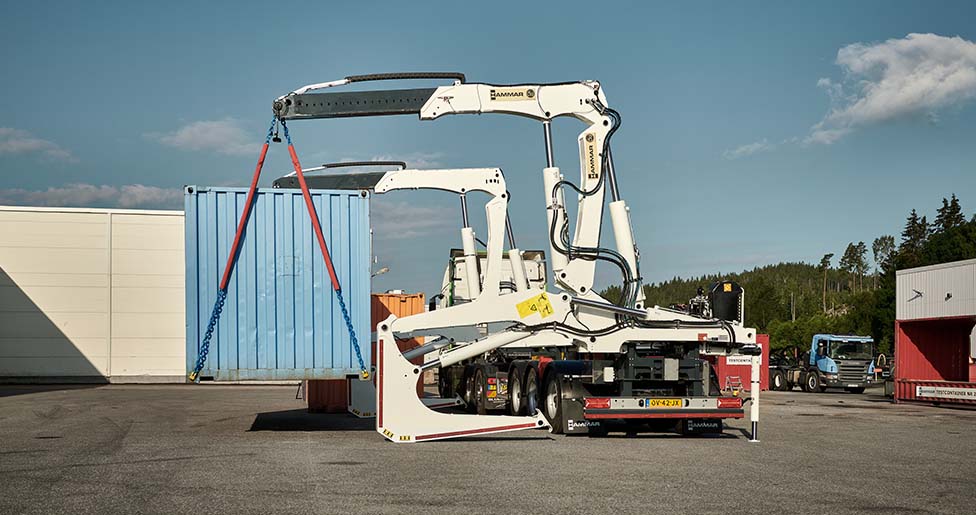

Hammar 500 Dock Mode

Dock Mode

The Dock Mode take smaller space and can be placed on different elevations. It also enables the Hammar 500 to lift lighter loads outside the support legs range, allowing more versatile positioning of the load.

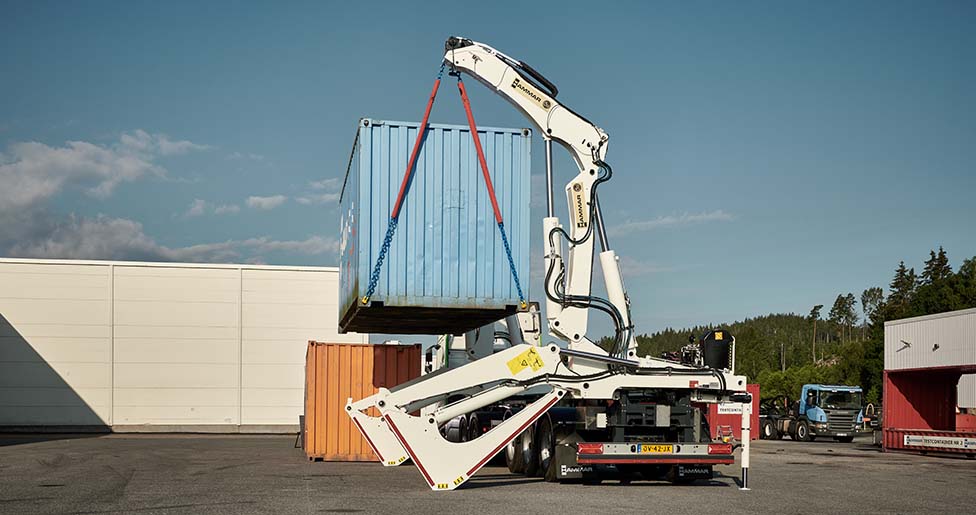

Hammar 500 Sledge Mode

Sledge Mode

The Sledge Mode has the fastest deployment and requires less space. Excellent for quickly handling containers in ground-to-ground operations.

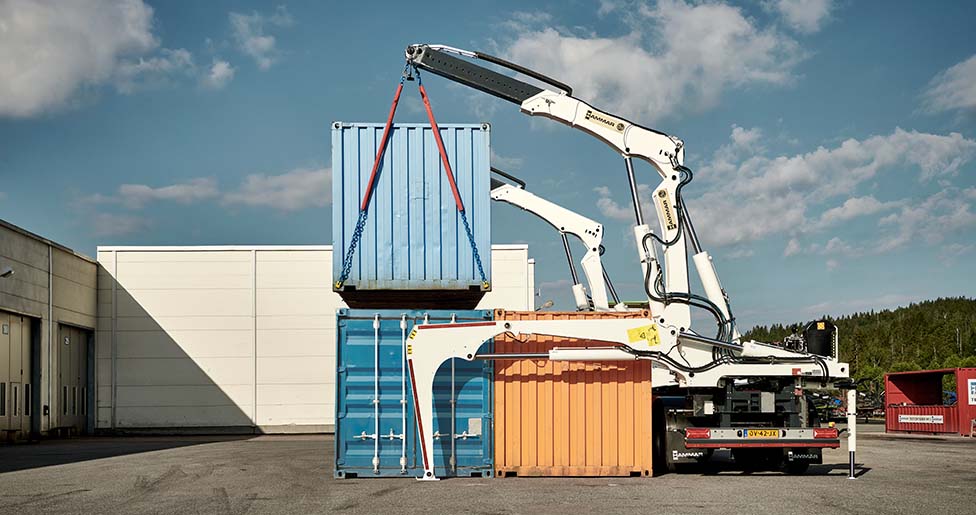

Sideloader Stack Two Rows Deep

Ultimate Stacking

The Hammar 500 can stack up to two high cube containers two rows deep. Its extendable cranes ensure easy and precise positioning, allowing you to stack two containers high weighing up to 30 tonnes and two containers high, two rows deep weighing up to 17,1 tonnes.

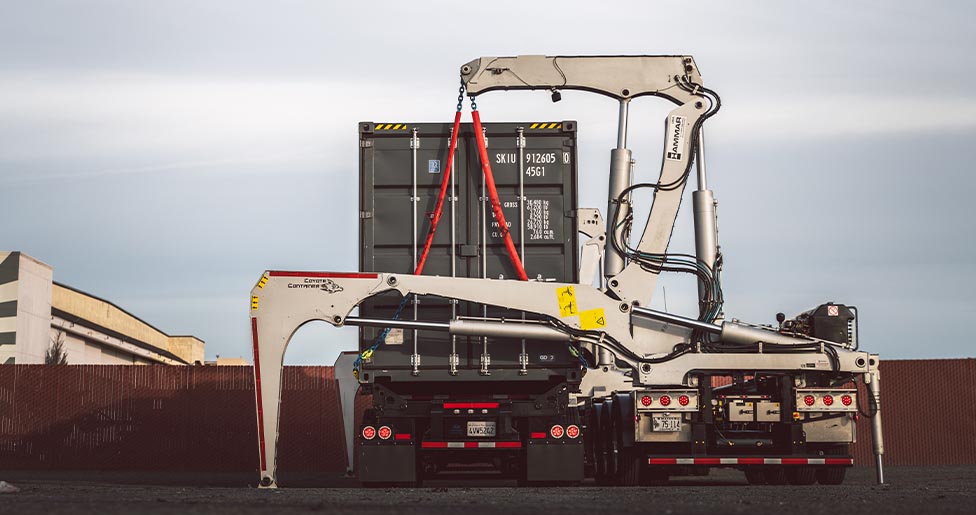

Sideloader H500 Transfer

Transfer from/to another chassis

The Hammar 500 offers exceptional transfer capabilities, making it easy to move containers from/to another chassis or rail wagon. Its support leg extends over and next to the companion chassis without making contact, creating a “tunnel” for fast and easy loading or unloading. This saves time by allowing trailers to drive in or out under the tunnel to the lifting zone without moving the support legs.

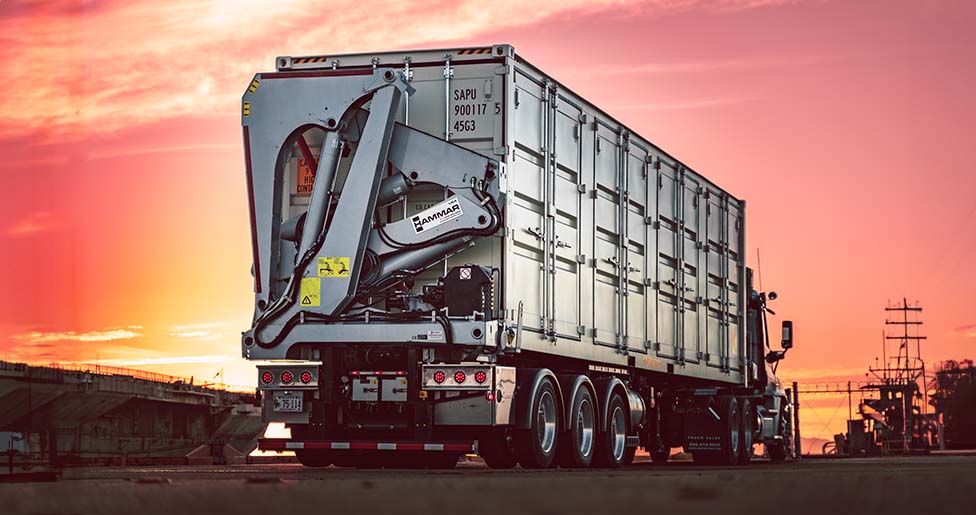

Hammar500 Sideloader 40Ft Transport

High safety

The Hammar 500 always comes equipped with a high quality, PLC based monitoring system that provides maximum safety. The mass and position of the load is continuously monitored, ensuring smooth and safe operations.

Hammar 500 chassis options

When buying a Hammar Sideloader you always get a high quality Hammar designed chassis, optimized and made for Sideloader operations. We have a number of models to fulfil our customers’ requirements, which are then adapted to suit local regulations and the customer’s needs.

Fixed Chassis, Sliding Cranes - 500 HS

The S-chassis is a fixed length, and has sliding cranes meaning it can handle multiple container sizes. It has a straight forward design and the lowest tare weight of all Hammar chassis. It is the most common model used world-wide. Also available with fixed cranes for single size containers upon request.

Fixed Sliding (S) Animation

Telescopic chassis, Combination - 500 HC

The most common telescopic chassis is the C-chassis (Combination). It combines sliding cranes with a telescopic chassis, and has a low tare weight. The sliding cranes enable optimized weight distribution of your load. A telescopic chassis is a requirement in some countries for transporting 45' or longer containers on the road.

Telescopic Combination (C) Animation

Image gallery

Hammar 500 40Ft Doublestack
500 Sideloader Lift Above Fence
Hammar Sidelifter 500 20Ft Lift
Hammar Sideloader Transfer Extensions
Prepare Transfer Hammar500
Hammar500 Sideloader Container Swap
Sideloader 500 Lift Container Row

Chassis adaptions

Sideloader Axle Configuration

Axle configurations

We offer different axle configurations to your Hammar chassis; different numbers of axles, optimized weight distribution and more. All conforming to local regulations and your needs.

Road Train Options

Road train options

A Hammar chassis can be built with a 5th wheel/turntable or a drawbar coupling for towing another semi-trailer or trailer behind. This allows you to have a road train that you can load and unload with the Sideloader.

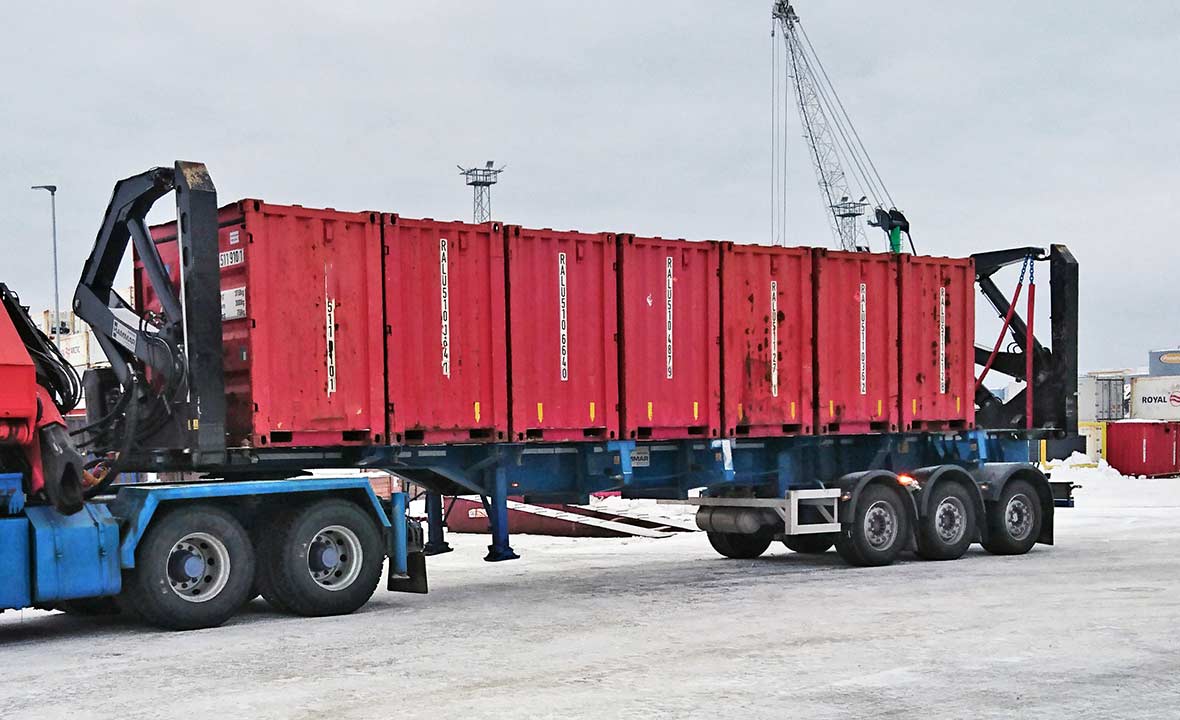

Sideloader Custom Container Sizes

Load & container size adaptions

Hammar can adapt your Sideloader to carry various sized containers or other loads. We can build the chassis to fit containers from 5' to 60' and have wide range of other solutions for other loads or containers requiring additional equipment.

Hammar Dropdeck

Low bed chassis

A Hammar trailer chassis can be built as a low bed chassis, giving a significantly lower overall height when loaded. Excellent for extra high loads or other situations that restrict the height of the vehicle.

Hammar 500 options & accessories

Hammar Lifting Options

Lifting

Choose what, when and how you can lift with your Hammar Sideloader.

2X20

2x20' capacity

A centre container beam with 4 twist locks is mounted. With the 2 twin-locks (joiners) included you can connect and lift 2 lightly loaded 20' containers simultaneously. Heavier can be transported.

Dangerous Goods

Dangerous goods

The Hammar is equipped and adapted for handling of dangerous goods according to local regulations.

Raise Lower Function

Raise & Lower function

Allows the operator to adjust the height of the trailer when loading/unloading. Extremely useful when operating on uneven ground, or when transferring from/to a higher or lower companion chassis.

Weighing Equipment

Weighing equipment

The Hammar can be equipped with two different weighing systems; a load indicator system with an accuracy of ± 400 kg and/or a SOLAS certified scale with an accuracy down to ±50 with optional printer.

Composite Foot Plates

Composite foot plates

Two foot plates of recycled composite material. Placed under the support legs or trailer landing legs, they drastically reduce the ground pressure. Comes with storage brackets on the Hammarlift.

Sideloader Spreader

Top spreader

Available in two versions for two purposes: 1) Handling containers in the top corner castings & faster handling. 2) Handling swap body containers or other similar cargo. N/A on all models.

Adjustable container stops

Adjustable container stops

Adjustable container stops allow for transport of over-wide containers, e.g. tank or pallet wide containers.

Optimisation_hammar

Optimisation

Make operations and maintenance smoother and more efficient

Automatic Twistlocks

Automatic container twist locks

Automatic crane twist locks for more efficient operations and less room for human error. Connected to automatically open/close when the crane power is engaged/disengaged.

Hammar Central Lubrication

Central Lubrication System

Automated centralized lubrication system supplying all greasing points on the crane and trailer. Reduces maintenance time and costs, and increases the product life time.

Hammar Positioning Equipment

Hammar Optical positioning equipment

“HOPE” - Optical sensors reading the position of a container next to the Sideloader when lining up, alerting with a green light when cranes are in correct position for lifting. Increases efficiency.

Toolbox

Toolbox

Alloy toolbox mounted on the non-lifting side of the Hammar Sideloader.

Hammar Liftingaxle

Lifting axle

Lifting one axle when driving with less load. Saves greatly on tyre wear. Lowers automatically when maximum legal load is reached on the other axles.

Hammar_Safety

Safety

Increase safety for operations, the Sideloader and staff.

Sideloader Radio Remote

Radio remote control

Cordless radio remote for all Hammar functions. The operator can control the lifting from any position outside the hazard zone, increasing usability, efficiency and safety. Choose a 1 or 2 hand unit.

Sideloader Reverse Camera

Reverse camera/sensor

A camera or reverse sensor is installed in the rear of the Hammarlift. Increases efficiency, usability, safety and prevents damages.

Hammar Extra Lightning

Extra lights

Equip the Hammar Sideloader with extra LED lights for safer and more efficient operations with limited daylight. E.g. illumination of twist locks, extra reverse lights, or extra warning lights etc.

LightWeight

LightWeight

Reduce your tare weight, increase your payload and reduce wear and fuel consumption.

Lightweight Chassi

LightWeight Chassi

Optimized chassis structure and materials reduces the tare weight by 270-470 kgs depending on model. Available with alloy landing legs & carbon fender brackets. Available for chassis model S and C.

Aluminium Rims

Aluminium rims

Aluminium rims reduces tare weight by 100-200 kg, while giving better heat distrubution, longer lifetime for tyres, brakes etc. and lowered fuel consumption. Gives a sleek and polished finish.

Styling_Hammar

Styling

Personalize the look and style of your Hammar Sideloader. Your advertising on the road.

Painting Options

Painting options

Choose from a number of painting options. Colors of chassis and cranes. What type of paint, Hammar standard, metallic, clear coating or with zinc primer.

Aluminium Rims

Aluminium rims

Aluminium rims gives a sleek and polished finish. Also reduces tare weight by 100-200 kg, while giving heat distrubution, longer life time for tyres, brakes etc. and lowered fuel consumption.

Stainless Steel Lightbar

Stainless steel light bar

A high polished stainless steel light bar, with round LED lights. Gives a sleek and high-end look.

Hammar Advertisement Plate

Advertisement plate

Personalize your Hammar with advertisement plates mounted on the sideguards or at the back crane of the 195 model. Choose color, graphics, text etc according to your needs.

Mud Guards

Mudguards

Choose from standard mud guards and full width mud guards. Available with custom prints as option.

PowerSource

Power Source

Choose how to power your Hammarlift.

Hammar Truck Hydraulics

Truck Hydraulics

Mount or use an existing hydraulic pump & power take-off on your truck and use the truck to power the Hammar. Significantly less tare weight and maintenance costs compared to a power pack.

Sideloader Powerpack

Power Pack

Power the Hammar by mounting a separate engine on the chassis. Makes the unit powered independently of any truck.

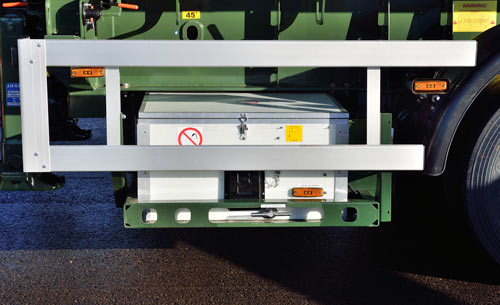

Electric Power Pack

Electric Power Pack

A more environmentally friendly and quieter alternative to the diesel power pack. Can be charged by the truck while driving and by plug-in.
