12-30 tonnes Safe Working Load, tare weight from 2,7 tonnes.
12-30 tonnes lifting capacity
Available with 12, 15, 20, 25 or 30 tonnes Safe working load.
The crane and support legs are built in line with eachother, making the overall design more compact.

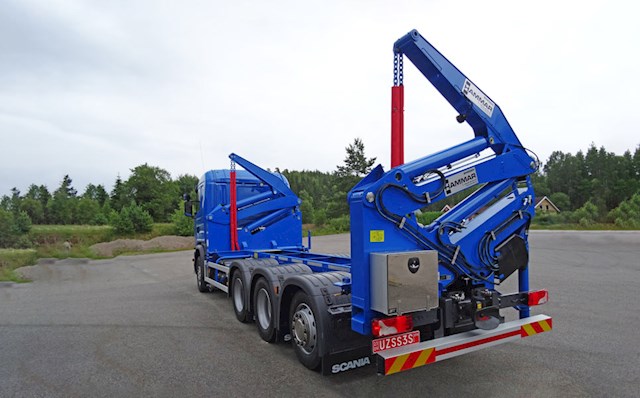

The Hammar 180 model is dedicated to permanent mounting on a truck chassis.
Low working height

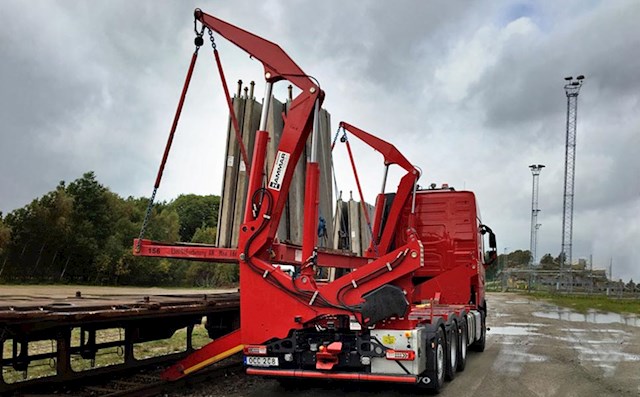

The support legs has a low working height, meaning they can be put below for example a companion chassis or rail wagon.
Extendable support leg
The support legs are extendable with a single support position. Simple and easy to use.
Low tare weight
The Hammar 180 is the lightest truckmounted Sidelifter on the market, giving maximum payload.

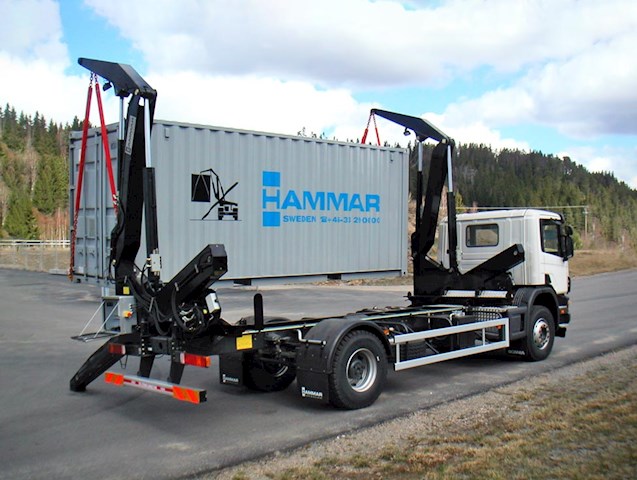

The Hammar 180 is a Sidelifter dedicated to permanent mounting on a truck chassis. It is designed with low tare weight and usability in mind. It has the lowest tare weight of all truck mounted Sidelifters. Choose between 12 , 15, 20, 25 or 30 tonnes lifting capacity (model 181, 182, 183, 184 or 185) and a large number of lifting options. During operation the support legs extend in a single, diagonal direction to be placed at ground level. The support legs are mounted at a low height relative to the truck chassis, meaning they have a low working height. This can be used to place the support legs under some companion chassis or rail wagons when transferring. The Hammar 180 is the best choice when you need a truck mounted unit, maximum payload and/or one of its many lifting options.

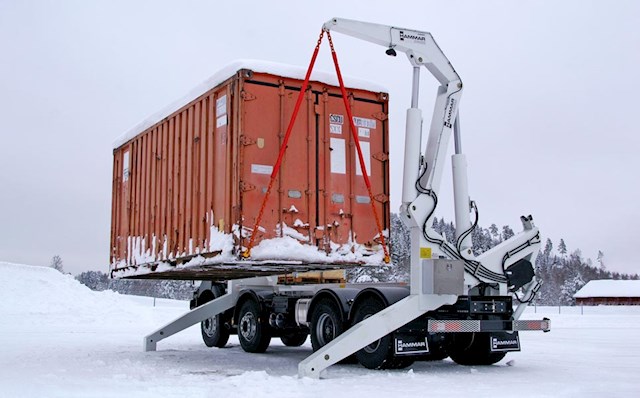

Lifting from/to ground level
Easy, fast and safe handling to/from ground level. A full handling cycle takes 2-4 minutes.

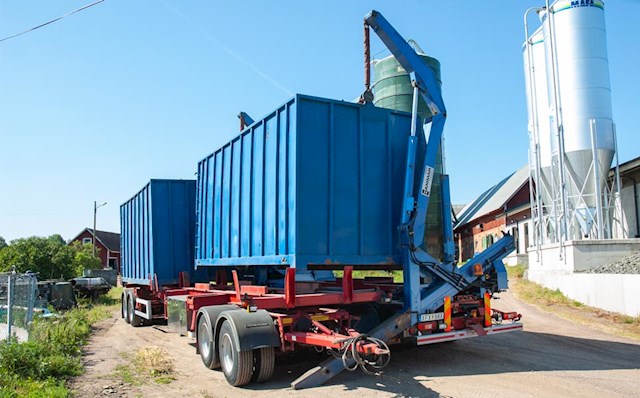

Transfer from/to another chassis
The 180 excels at transferring in some situations thanks to its low built support legs.
The Hammar 180 can be equipped with stacking capacity, enabling stacking of two 8’6” containers. Two extra support legs are mounted on the non-lifting side for extra stability and safety.
The Hammar 180 is the lightest truck mounted Sidelifter in the world. This will give you lower emissions, less wear and maximum payload on the road.
Equip the cranes with extendable over arms. Choose the short, medium or MegaReach model. The MegaReach can stack two empty containers in the 2nd row. Extendable over arms is N/A on all models.

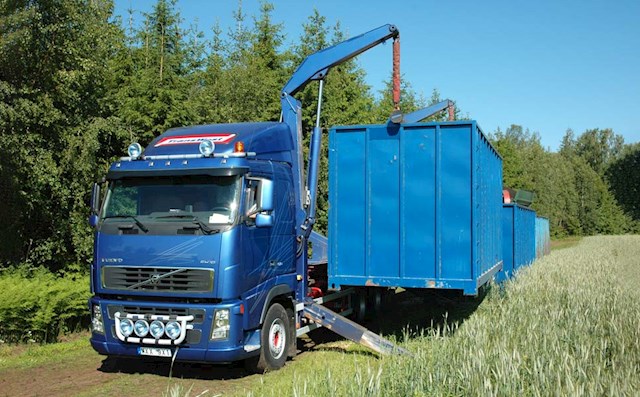

Available in two versions for two purposes: 1) Handling containers in the top corner castings & faster handling. 2) Handling swap body containers or other similar cargo. N/A on all models.
The Hammar is equipped and adapted for handling of dangerous goods according to local regulations.
The Hammar can be equipped with two different weighing systems; a load indicator system with an accuracy of ± 400 kg and/or a SOLAS certified scale with an accuracy down to ±50 with optional printer.
Composite foot plates
Two foot plates of recycled composite material. Placed under the support legs or trailer landing legs, they drastically reduce the ground pressure. Comes with storage brackets on the Hammarlift.
Adjustable container stops
Adjustable container stops allow for transport of over-wide containers, e.g. tank or pallet wide containers.
Equip your Hammarlift with the capacity to stack two containers high, from ground level. N/A for model 130 and 140.
Automatic container twist locks
Automatic crane twist locks for more efficient operations and less room for human error. Connected to automatically open/close when the crane power is engaged/disengaged.
Hammar Optical positioning equipment
“HOPE” - Optical sensors reading the position of a container next to the Sideloader when lining up, alerting with a green light when cranes are in correct position for lifting. Increases efficiency.
Radio remote control
Cordless radio remote for all Hammar functions. The operator can control the lifting from any position outside the hazard zone, increasing usability, efficiency and safety. Choose a 1 or 2 hand unit.
A high quality, PLC based monitoring system that provides maximum safety. The mass and position of the load is continuously monitored. Includes a display that shows a number of useful variables.
Equip the Hammar Sideloader with extra LED lights for safer and more efficient operations with limited daylight. E.g. illumination of twist locks, extra reverse lights, or extra warning lights etc.
Reduce your tare weight, increase your payload and reduce wear and fuel consumption.
Ultra Light cranes
The new generation of cranes. Reduce the tare weight of the Sideloader cranes by 400-800 kg depending on model. Available for model 160, 180 & 195. Hammar Safety+ system is included as a standard.
Personalize the look and style of your Hammar Sideloader. Your advertising on the road.
Choose from a number of painting options. Colors of chassis and cranes. What type of paint, Hammar standard, metallic, clear coating or with zinc primer.
