Hammar  195

36 or 45 tonnes safe working load, low tare weight-

Hammar 195 Hotspot
icon_hotspot.svg
Orange Target Image

36-45 tonnes lifting capacity

36 or 45 tonnes Safe working load.

icon_hotspot.svg
Orange Target Image

Versatile positioning

The support leg has multiple different support positions allowing it to handle almost any situation.

icon_hotspot.svg
Orange Target Image

Precision leg

The Hammar 195 has a extendable/telescopic and tilting support leg.

Low tare weight

The Hammar 195 has a low tare weight.

Orange Target Image
icon_hotspot.svg

Trailer or truck mounted

The Hammar 195 can be mounted both on a semi-trailer and directly on a truck frame.

Orange Target Image
icon_hotspot.svg

Why the Hammar 195 Sideloader?

The Hammar 195 is the most popular Sideloader model in the world. It's designed with versatility in mind and is available with a lifting capacity of 36 or 45 tonnes. It is the lightest Side loader in its class. The support legs are extending and tilting, making their positioning very versatile. An excellent quality when you have a wide range of different operations.
The support legs operate from a high position relative to the chassis, meaning you can more easily place the support legs on top of a higher companion chassis or rail wagon for example. The Hammar 195 is an all-round model, excellent for both ground level lifts and transferring to/from another chassis. It is the best choice when you need high versatility and maximized payload on the road.

Hammar 195 Sideloader Ground Level

Lifting from/to ground

The Hammar 195 Sideloader lifts containers to/from the ground with maximum safety and ease. A full handling cycle only takes 3-4 minutes. The versatile positioning of the support legs gives more options for handling containers where space is limited.

Hammar 195 Side Loader Transfer

Transfer from/to another chassis

The Hammar 195 Sidelifter can transfer to/from another chassis, including rail wagons. The versatile support legs can be placed behind/in front of the companion chassis, or on top or under it depending on the situation. When handling a lighter load, they can also be placed vertically down.

Hammar 195 Sideloader Stacking

Stacking option

The Hammar 195 can be equipped with 30 tonnes stacking capacity, enabling stacking of two containers. Two extra support legs are mounted on the non-lifting side for extra stability and safety.

Hammar 195 Sideloader Supportleg

Versatile support legs

The support legs of the 195 model are extendable and tilting. They have up to 2 meters outreach when placed on ground level and can tilt to stand vertically (with reduced lifting capacity). This allows multiple different support positions, enabling the 195 to handle almost any situation with ease.

Hammar 195 chassis options

When buying a Hammar Sideloader you always get a high quality Hammar designed chassis, optimized and made for Sideloader operations. We have a number of models to fulfil our customers’ requirements, which are then adapted to suit local regulations and the customer’s needs.

Fixed Chassis, Sliding Cranes - 195 S

The S-chassis is a fixed length, and has sliding cranes meaning it can handle multiple container sizes. It has a straight forward design and the lowest tare weight of all Hammar chassis. It is the most common model used world-wide. Also available with fixed cranes for single size containers upon request.

Fixed Sliding (S) Animation

Truck mounted, 195 B

The Hammar 195 can be mounted directly on a truck chassis. This provides the Sideloader with unbeatable manoeuvrability where 20’ container handling is required.

Truck Mounted (B)

Chassis adaptions

Sideloader Axle Configuration

Axle configurations

We offer different axle configurations to your Hammar chassis; different numbers of axles, optimized weight distribution and more. All conforming to local regulations and your needs.

Road Train Options

Road train options

A Hammar chassis can be built with a 5th wheel/turntable or a drawbar coupling for towing another semi-trailer or trailer behind. This allows you to have a road train that you can load and unload with the Sideloader.

Sideloader Custom Container Sizes

Load & container size adaptions

Hammar can adapt your Sideloader to carry various sized containers or other loads. We can build the chassis to fit containers from 5' to 60' and have wide range of other solutions for other loads or containers requiring additional equipment.

Hammar Dropdeck

Low bed chassis

A Hammar trailer chassis can be built as a low bed chassis, giving a significantly lower overall height when loaded. Excellent for extra high loads or other situations that restrict the height of the vehicle.

Image Gallery

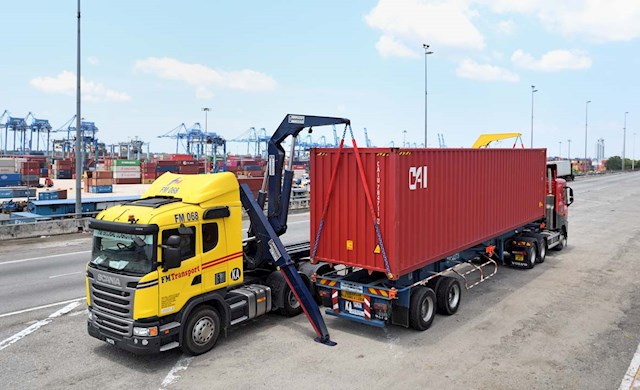

Hammar 195 Sideloader Transfer MY

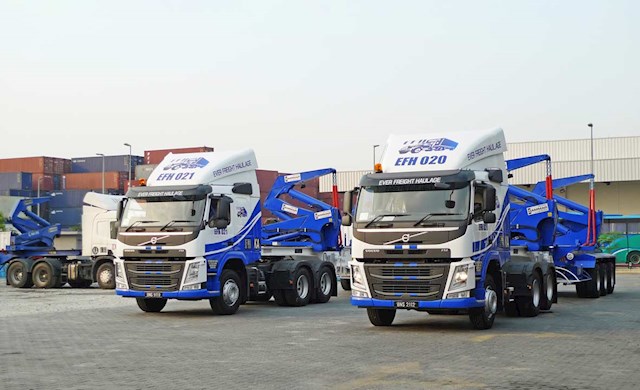

3 Hammar 195 Sideloaders

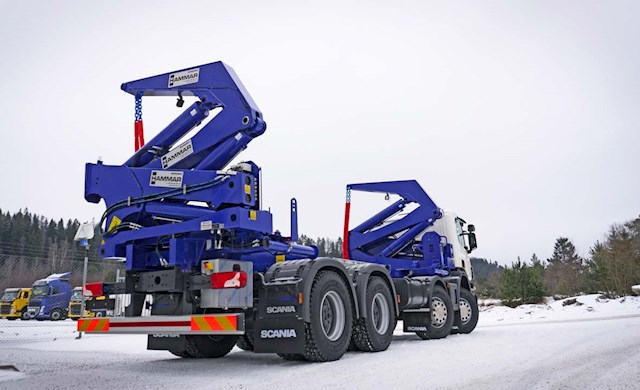

Hammar 195 Sideloader Truckmounted

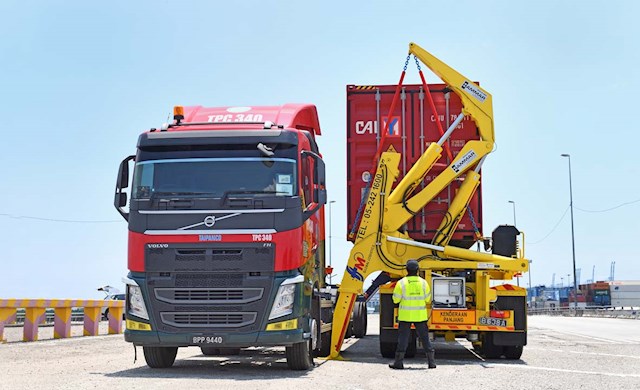

Sideloader 195 Transfer Flexleg

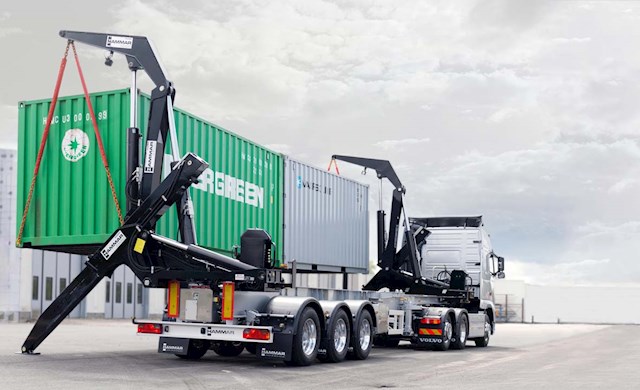

Hammar 195 Side lifter 2X20lift
Hammar 195 Sideloader Transport Au

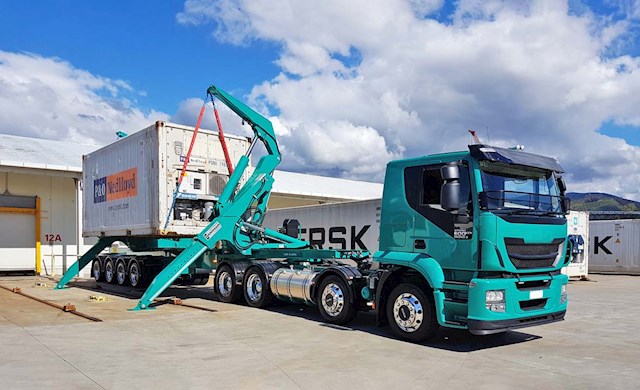

Swinglift 195 Lift20' Reefer

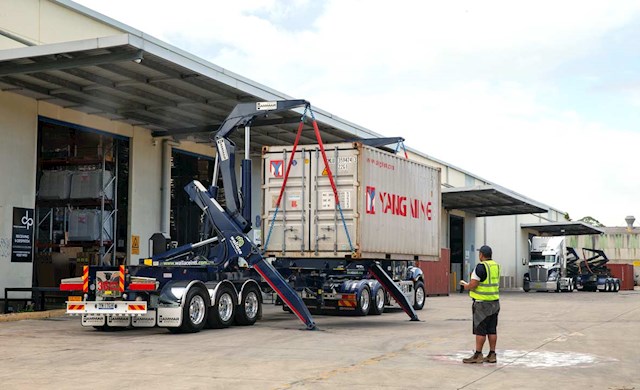

Sidelifter 195 Lift 20'Container
Sideloader 195 Transfer 1Of2
Sideloader 195 Transfer 20'

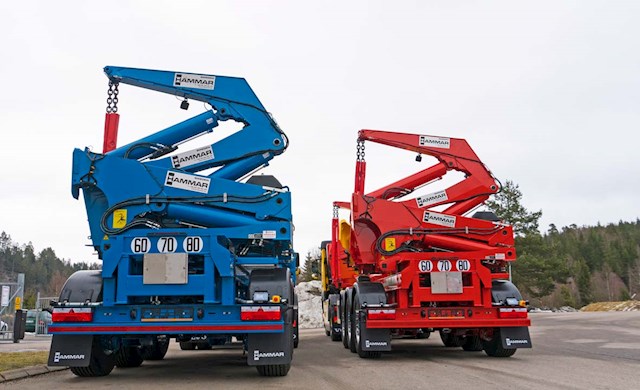

Two Hammar 195 Sideloaders
Hammar 190 Sideloader Truck mounted Port

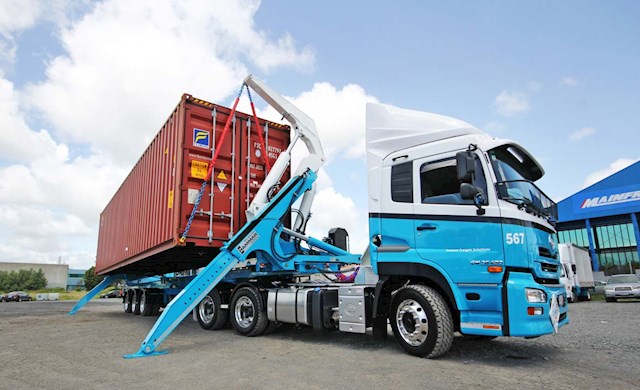

Hammar 195 Sideloader Lift40'

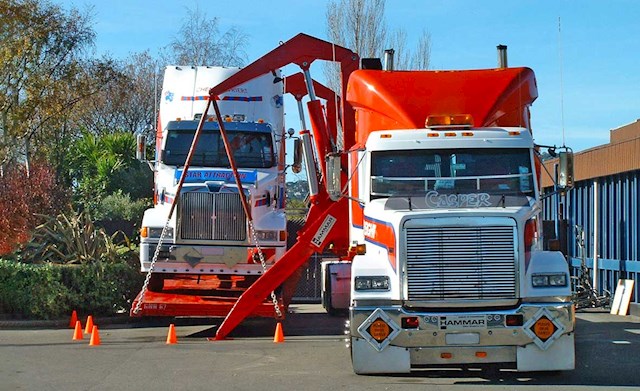

Hammar 195 Sideloader Flattruck

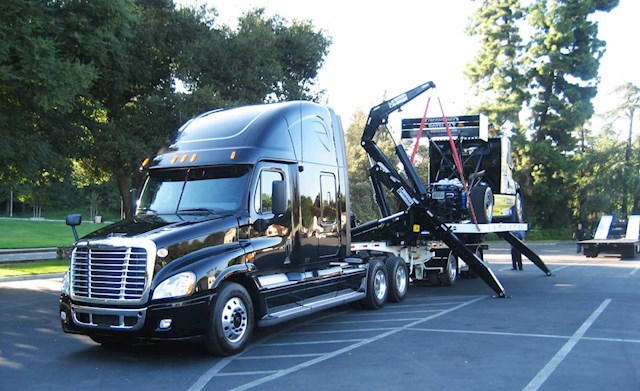

Hammar 195 Sideloader Racetruck

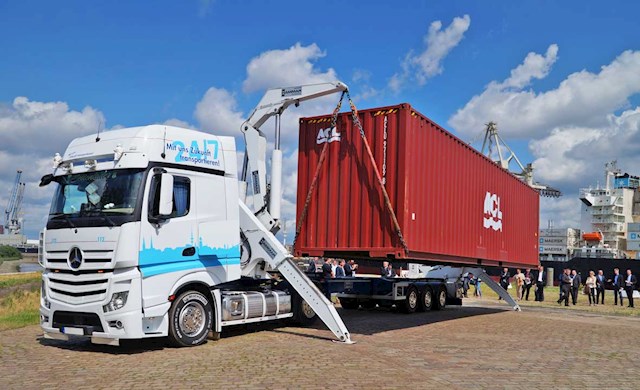

Hammar 195 Sideloader Lift40' DE

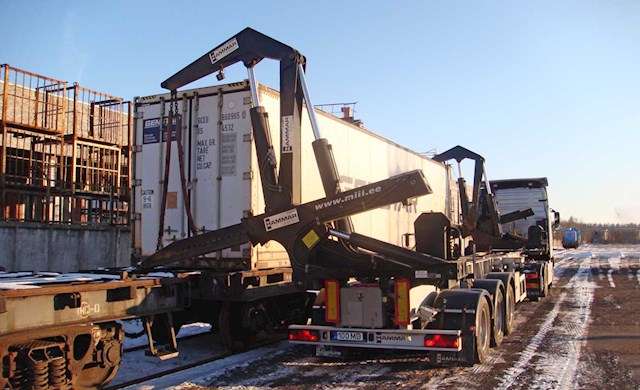

Hammar 195 Sideloader Railwagon
Hammar 195 Sideloader Roadtrain

Hammar 195 options & accessories

Hammar Lifting Options

Lifting

Choose what, when and how you can lift with your Hammar Sideloader.

2X20

2x20' capacity

A centre container beam with 4 twist locks is mounted. With the 2 twin-locks (joiners) included you can connect and lift 2 lightly loaded 20' containers simultaneously. Heavier can be transported.

Sideloader Extendable Cranes-old

Extendable cranes

Equip the cranes with extendable over arms. Choose the short, medium or MegaReach model. The MegaReach can stack two empty containers in the 2nd row.

Dangerous Goods

Dangerous goods

The Hammar is equipped and adapted for handling of dangerous goods according to local regulations.

Composite Foot Plates

Composite foot plates

Two foot plates of recycled composite material. Placed under the support legs or trailer landing legs, they drastically reduce the ground pressure. Comes with storage brackets on the Hammarlift.

Sideloader Stacking Option

Stacking capacity

Equip your Hammarlift with the capacity to stack two containers high, from ground level. N/A for model 130 and 140.

Stepover Leg

StepOver leg

Replace one of the support legs to the StepOver leg. Improves transfer operations, stability and ground pressure, while retaining the benefits of the other support leg. Available on model 195 and 151.

Optimisation_hammar

Optimisation

Make operations and maintenance smoother and more efficient

Automatic Twistlocks

Automatic container twist locks

Automatic crane twist locks for more efficient operations and less room for human error. Connected to automatically open/close when the crane power is engaged/disengaged.

Hammar Positioning Equipment

Hammar Optical positioning equipment

“HOPE” - Optical sensors reading the position of a container next to the Sideloader when lining up, alerting with a green light when cranes are in correct position for lifting. Increases efficiency.

Toolbox

Toolbox

Alloy toolbox mounted on the non-lifting side of the Hammar Sideloader.

Hammar Liftingaxle

Lifting axle

Lifting one axle when driving with less load. Saves greatly on tyre wear. Lowers automatically when maximum legal load is reached on the other axles.

Hammar_Safety

Safety

Increase safety for operations, the Sideloader and staff.

Sideloader Radio Remote

Radio remote control

Cordless radio remote for all Hammar functions. The operator can control the lifting from any position outside the hazard zone, increasing usability, efficiency and safety. Choose a 1 or 2 hand unit.

Sideloader Reverse Camera

Reverse camera/sensor

A camera or reverse sensor is installed in the rear of the Hammarlift. Increases efficiency, usability, safety and prevents damages.

Hammar Extra Lightning

Extra lights

Equip the Hammar Sideloader with extra LED lights for safer and more efficient operations with limited daylight. E.g. illumination of twist locks, extra reverse lights, or extra warning lights etc.

LightWeight

LightWeight

Reduce your tare weight, increase your payload and reduce wear and fuel consumption.

Lightweight Chassi

LightWeight Chassi

Optimized chassis structure and materials reduces the tare weight by 270-470 kgs depending on model. Available with alloy landing legs & carbon fender brackets. Available for chassis model S and C.

Aluminium Rims

Aluminium rims

Aluminium rims reduces tare weight by 100-200 kg, while giving better heat distrubution, longer lifetime for tyres, brakes etc. and lowered fuel consumption. Gives a sleek and polished finish.

Styling_Hammar

Styling

Personalize the look and style of your Hammar Sideloader. Your advertising on the road.

Painting Options

Painting options

Choose from a number of painting options. Colors of chassis and cranes. What type of paint, Hammar standard, metallic, clear coating or with zinc primer.

Aluminium Rims

Aluminium rims

Aluminium rims gives a sleek and polished finish. Also reduces tare weight by 100-200 kg, while giving heat distrubution, longer life time for tyres, brakes etc. and lowered fuel consumption.

Stainless Steel Lightbar

Stainless steel light bar

A high polished stainless steel light bar, with round LED lights. Gives a sleek and high-end look.

Hammar Advertisement Plate

Advertisement plate

Personalize your Hammar with advertisement plates mounted on the sideguards or at the back crane of the 195 model. Choose color, graphics, text etc according to your needs.

Mud Guards

Mudguards

Choose from standard mud guards and full width mud guards. Available with custom prints as option.

PowerSource

Power Source

Choose how to power your Hammarlift.

Hammar Truck Hydraulics

Truck Hydraulics

Mount or use an existing hydraulic pump & power take-off on your truck and use the truck to power the Hammar. Significantly less tare weight and maintenance costs compared to a power pack.

Sideloader Powerpack

Power Pack

Power the Hammar by mounting a separate engine on the chassis. Makes the unit powered independently of any truck.
