Why the Hammar 195 Sideloader?

The Hammar 195 is the most popular Sideloader model in the world. It's designed with versatility in mind and is available with a lifting capacity of 79,300 lbs or 99,200 lbs. It is the lightest Side loader in its class, with a tare weight starting at 19,000 lbs with 20’-40’ capacity, 2 axles and 79,300 lbs SWL. The support legs are extending and tilting, making their positioning very versatile. An excellent quality when you have a wide range of different operations.
The support legs operate from a high position relative to the chassis, meaning you can more easily place the support legs on top of a higher companion chassis or rail wagon for example. The Hammar 195 is an all-round model, excellent for both ground level lifts and transferring to/from another chassis. It is the best choice when you need high versatility and maximized payload on the road.

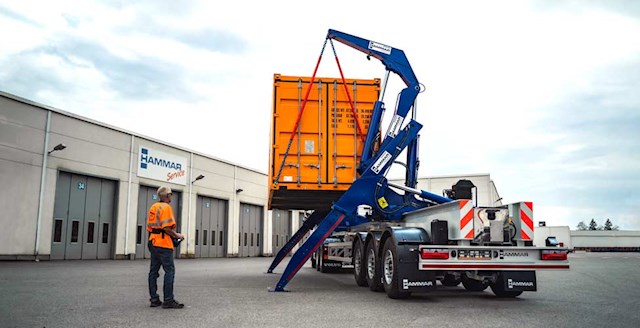

Lifting from/to ground

The Hammar 195 Sideloader lifts containers to/from the ground with maximum safety and ease. A full handling cycle only takes 3-4 minutes. The versatile positioning of the support legs gives more options for handling containers where space is limited.

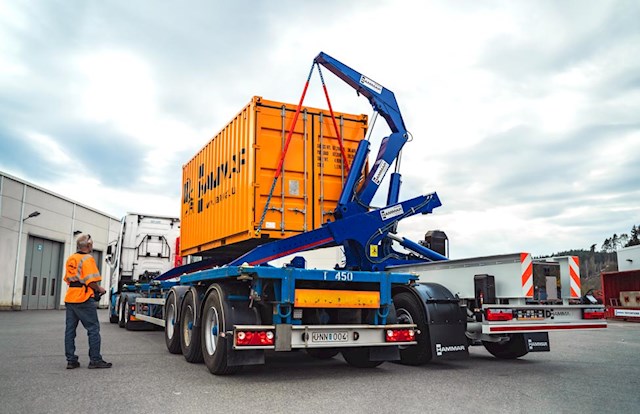

Transfer from/to another chassis

The Hammar 195 Sidelifter can transfer to/from another chassis, including rail wagons. The versatile support legs can be placed behind/in front of the companion chassis, or on top or under it depending on the situation. When handling a lighter load, they can also be placed vertically down.

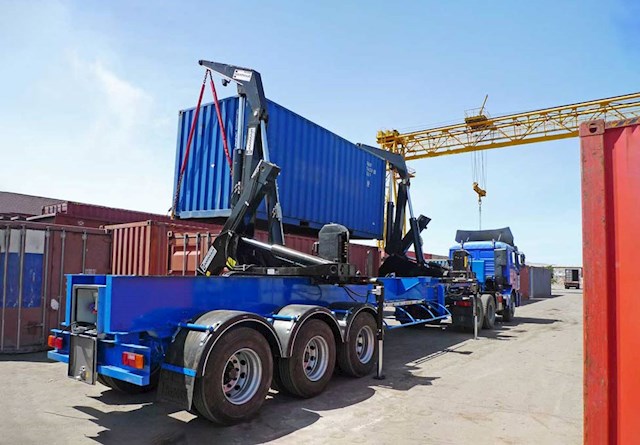

Stacking option

The Hammar 195 can be equipped with 66,000 lbs stacking capacity, enabling stacking of two containers. Two extra support legs are mounted on the non-lifting side for extra stability and safety.

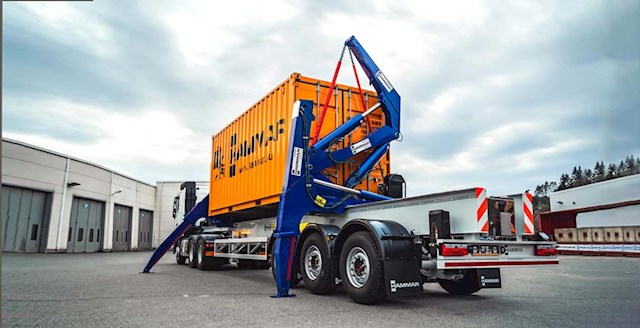

Versatile support legs

The support legs of the 195 model are extendable and tilting. They have up to 6.5 ft outreach when placed on ground level and can tilt to stand vertically (with reduced lifting capacity). This allows multiple different support positions, enabling the 195 to handle almost any situation with ease.

Hammar 195 chassis options

When buying a Hammar Sideloader you always get a high quality Hammar designed chassis, optimized and made for Sideloader operations. We have a number of models to fulfil our customers’ requirements, which are then adapted to suit local regulations and the customer’s needs.

Fixed Chassis, Sliding Cranes - 195 S

The S-chassis is a fixed length, and has sliding cranes meaning it can handle multiple container sizes. It has a straight forward design and the lowest tare weight of all Hammar chassis. It is the most common model used world-wide. Also available with fixed cranes for single size containers upon request.

Telescopic chassis, Combination - 195 C

The most common telescopic chassis is the C-chassis (Combination). It combines sliding cranes with a telescopic chassis, and has a low tare weight. The sliding cranes enable optimized weight distribution of your load. A telescopic chassis is a requirement in some countries for transporting 45' or longer containers on the road.

Truck mounted, 195 B

The Hammar 195 can be mounted directly on a truck chassis. This provides the Sideloader with unbeatable manoeuvrability where 20’ container handling is required.

195 options and accessories

Lifting

Choose what, when and how you can lift with your Hammar Sideloader.

Show all

2x20' capacity

A centre container beam with 4 twist locks is mounted. With the 2 twin-locks (joiners) included you can connect and lift 2 lightly loaded 20' containers simultaneously. Heavier can be transported.

Raise & Lower function

Allows the operator to adjust the height of the trailer when loading/unloading. Extremely useful when operating on uneven ground, or when transferring from/to a higher or lower companion chassis.

Extendable cranes

Equip the Sideloader with extendable upper arms, available with up to 19.6 ft reach. This allows for a much larger handling area, as well as stacking two containers high, two rows deep.

∨

Top spreader

Allows handling of containers in the top corner castings and faster handling.

Weighing equipment

There are two different weighing systems; a load indicator system with an accuracy of ± 400 kg and/or a SOLAS certified scale with an accuracy down to ±50 with optional printer.

Composite foot plates

Two foot plates of recycled composite material. Placed under the support legs or trailer landing legs, they drastically reduce the ground pressure. Comes with storage brackets on the Hammarlift.

Adjustable container stops

Adjustable container stops allow for transport of over-wide containers, e.g. tank or pallet wide containers.

Stacking capacity

Equip your Hammarlift with the capacity to stack two containers high, from ground level.

Underslung Leg

Replace one of the support legs to the extending underslung leg. Excellent when support positions are below a chassis, rail wagon or similar. Available only for specific models.

StepOver leg

Replace one of the support legs to the StepOver leg. Improves transfer operations, stability and ground pressure, while retaining the benefits of the other support leg. Available only on specific models.

Optimisation

Make operations and maintenance smoother and more efficient

Show all

Automatic container twist locks

Automatic crane twist locks for more efficient operations and less room for human error. Connected to automatically open/close when the crane power is engaged/disengaged.

Central Lubrication System

Automated centralized lubrication system supplying all greasing points on the crane and trailer. Reduces maintenance time and costs, and increases the product life time.

Hammar Optical positioning equipment

“HOPE” - Optical sensors reading the position of a container next to the Sideloader when lining up, alerting with a green light when cranes are in correct position for lifting. Increases efficiency.

Toolbox

Alloy toolbox mounted on the non-lifting side of the Hammar Sideloader.

Lifting axle

Lifting one axle when driving with less load. Saves greatly on tyre wear. Lowers automatically when maximum legal load is reached on the other axles.

Safety

Increase safety for operations, the Sideloader and staff.

Show all

Radio remote control

Cordless radio remote for all Hammar functions. The operator can control the lifting from any position outside the hazard zone, increasing usability, efficiency and safety. Choose a 1 or 2 hand unit.

Hammar Safety+

A high quality, PLC based monitoring system that provides maximum safety. The mass and position of the load is continuously monitored. Includes a display that shows a number of useful variables.

Reverse camera/sensor

A camera or reverse sensor is installed in the rear of the Hammarlift. Increases efficiency, usability, safety and prevents damages.

Extra lights

Equip the Hammar Sideloader with extra LED lights for safer and more efficient operations with limited daylight. E.g. illumination of twist locks, extra reverse lights, or extra warning lights etc.

Styling

Personalize the look and style of your Hammar Sideloader. Your advertising on the road.

Show all

Painting options

Choose from a number of painting options. Colors of chassis and cranes. What type of paint, Hammar standard, metallic, clear coating or with zinc primer.

Aluminium rims

Aluminium rims gives a sleek and polished finish. Also reduces tare weight by 100-200 kg, while giving heat distrubution, longer life time for tyres, brakes etc. and lowered fuel consumption.

Advertisement plate

Personalize your Hammar with advertisement plates mounted on the sideguards or at the back crane of the 195 model. Choose color, graphics, text etc according to your needs.

Mudguards

Choose from standard mud guards and full width mud guards. Available with custom prints as option.

Power Source

Choose how to power your Hammarlift.

Show all

Truck Hydraulics

Mount a wet kit (hydraulic pump, reservoir, hoses, valves, and PTO) on your truck or use an existing one to power the Hammar. This reduces tare weight and lowers maintenance compared to alternatives.

Diesel Power Pack

Power the Hammar by mounting a separate engine on the chassis. Makes the unit powered independently of any truck.
