Hammar  110

2x20' capacity

A centre container beam with 4 twist locks is mounted. With the 2 twin-locks (joiners) included you can connect and lift 2 lightly loaded 20' containers simultaneously. Heavier can be transported.

Raise & Lower function

Allows the operator to adjust the height of the trailer when loading/unloading. Extremely useful when operating on uneven ground, or when transferring from/to a higher or lower companion chassis.

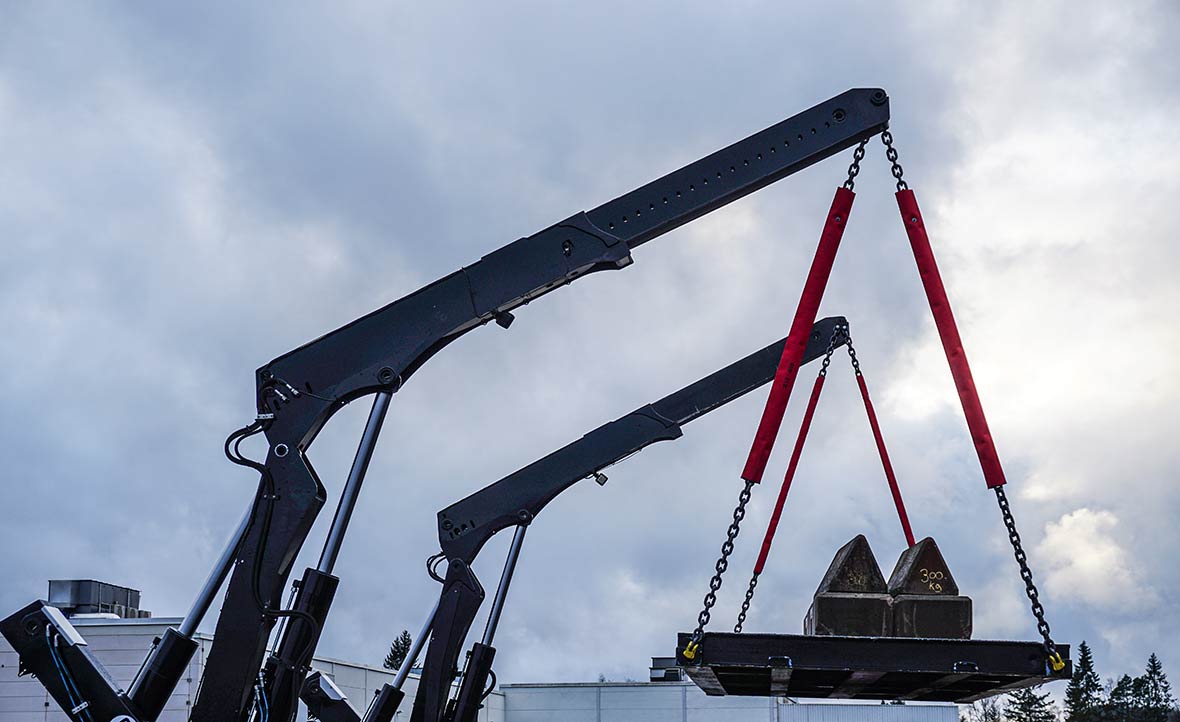

Extendable cranes

Equip the Sideloader with extendable upper arms, available with up to 19.6 ft reach. This allows for a much larger handling area, as well as stacking two containers high, two rows deep.

Top spreader

Allows handling of containers in the top corner castings and faster handling.

Weighing equipment

There are two different weighing systems; a load indicator system with an accuracy of ± 400 kg and/or a SOLAS certified scale with an accuracy down to ±50 with optional printer.

Composite foot plates

Two foot plates of recycled composite material. Placed under the support legs or trailer landing legs, they drastically reduce the ground pressure. Comes with storage brackets on the Hammarlift.

Adjustable container stops

Adjustable container stops allow for transport of over-wide containers, e.g. tank or pallet wide containers.

Stacking capacity

Equip your Hammarlift with the capacity to stack two containers high, from ground level.

Underslung Leg

Replace one of the support legs to the extending underslung leg. Excellent when support positions are below a chassis, rail wagon or similar. Available only for specific models.

Precision leg

Replace one of the support legs to the extending and tilting precision leg. Improves versatility while retaining the operation benefits of the other support leg. Available only on specific models.

Automatic container twist locks

Automatic crane twist locks for more efficient operations and less room for human error. Connected to automatically open/close when the crane power is engaged/disengaged.

Central Lubrication System

Automated centralized lubrication system supplying all greasing points on the crane and trailer. Reduces maintenance time and costs, and increases the product life time.

Hammar Optical positioning equipment

“HOPE” - Optical sensors reading the position of a container next to the Sideloader when lining up, alerting with a green light when cranes are in correct position for lifting. Increases efficiency.

Toolbox

Alloy toolbox mounted on the non-lifting side of the Hammar Sideloader.

Lifting axle

Lifting one axle when driving with less load. Saves greatly on tyre wear. Lowers automatically when maximum legal load is reached on the other axles.

Radio remote control

Cordless radio remote for all Hammar functions. The operator can control the lifting from any position outside the hazard zone, increasing usability, efficiency and safety. Choose a 1 or 2 hand unit.

Hammar Safety+

A high quality, PLC based monitoring system that provides maximum safety. The mass and position of the load is continuously monitored. Includes a display that shows a number of useful variables.

Reverse camera/sensor

A camera or reverse sensor is installed in the rear of the Hammarlift. Increases efficiency, usability, safety and prevents damages.

Extra lights

Equip the Hammar Sideloader with extra LED lights for safer and more efficient operations with limited daylight. E.g. illumination of twist locks, extra reverse lights, or extra warning lights etc.

Painting options

Choose from a number of painting options. Colors of chassis and cranes. What type of paint, Hammar standard, metallic, clear coating or with zinc primer.

Aluminium rims

Aluminium rims gives a sleek and polished finish. Also reduces tare weight by 100-200 kg, while giving heat distrubution, longer life time for tyres, brakes etc. and lowered fuel consumption.

Advertisement plate

Personalize your Hammar with advertisement plates mounted on the sideguards or at the back crane of the 195 model. Choose color, graphics, text etc according to your needs.

Mudguards

Choose from standard mud guards and full width mud guards. Available with custom prints as option.

Truck Hydraulics

Mount a wet kit (hydraulic pump, reservoir, hoses, valves, and PTO) on your truck or use an existing one to power the Hammar. This reduces tare weight and lowers maintenance compared to alternatives.

Diesel Power Pack

Power the Hammar by mounting a separate engine on the chassis. Makes the unit powered independently of any truck.
